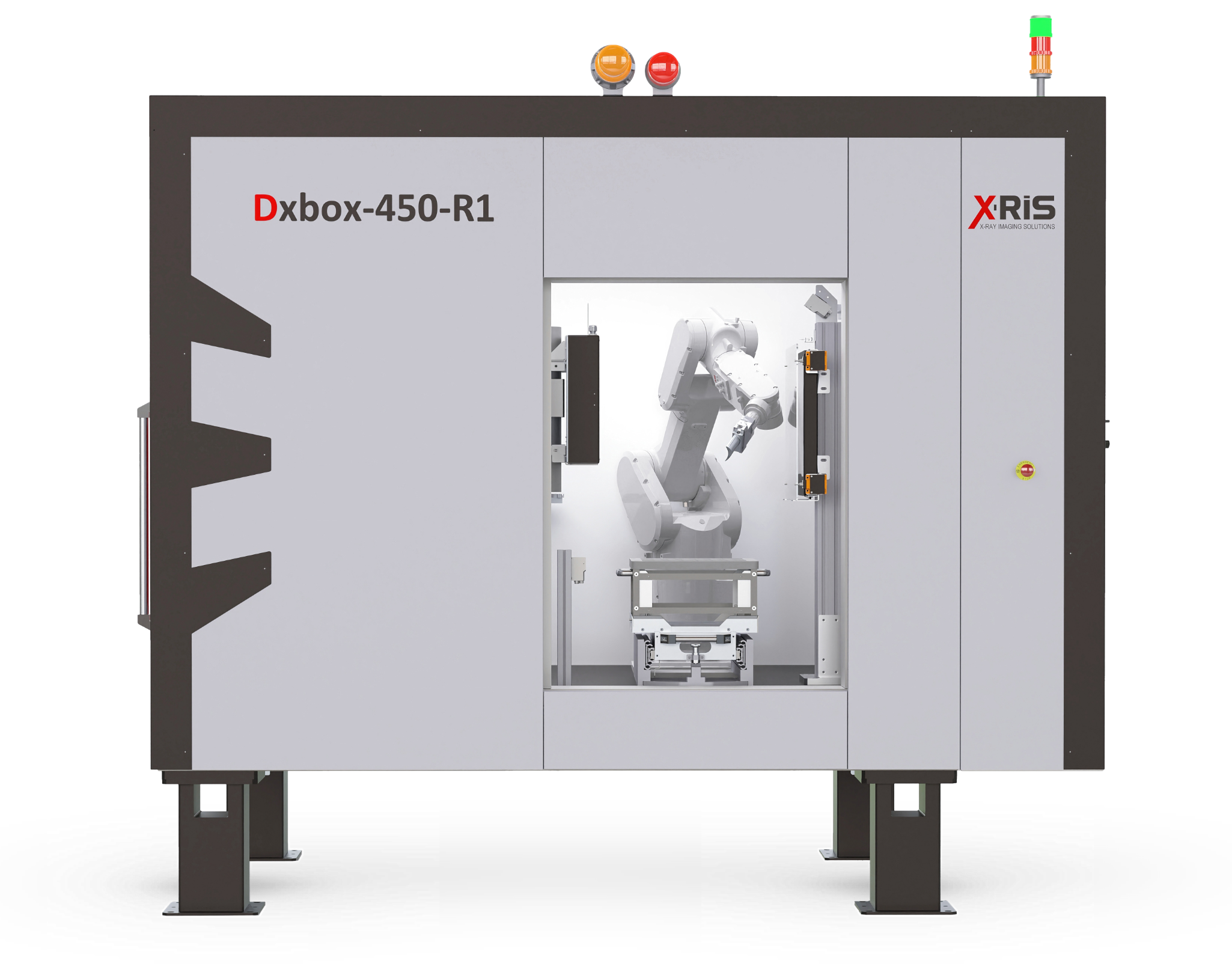

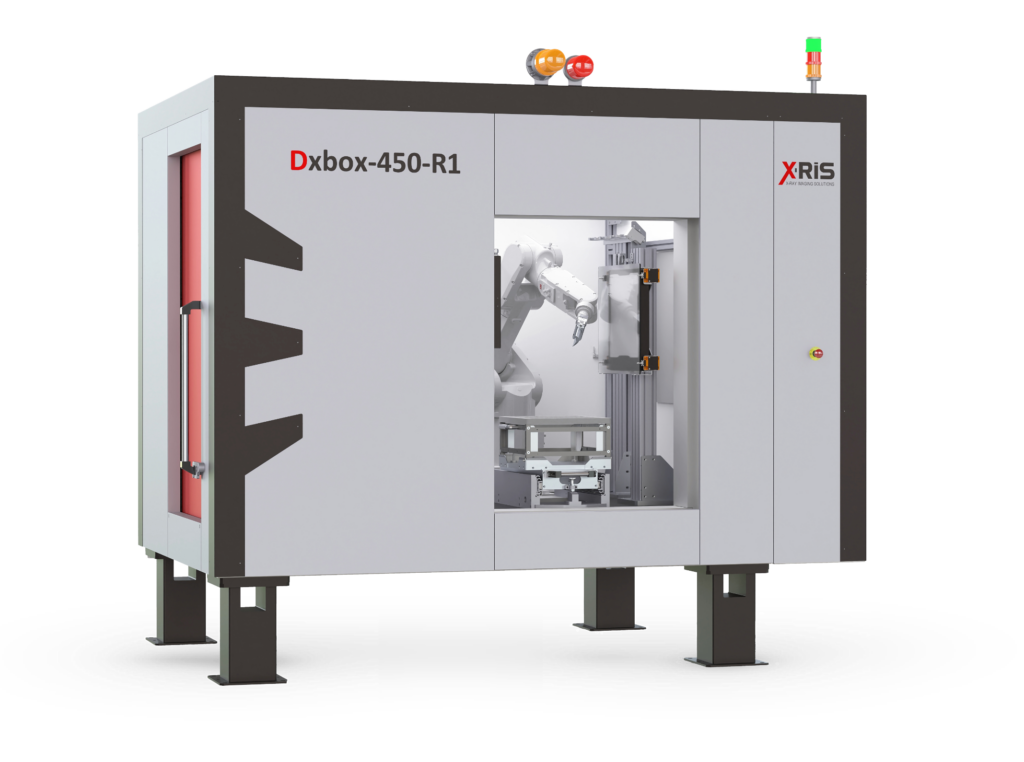

Advanced NDT system for blade inspection
Efficient (un)loading
The Dxbox-R1 includes a rail-mounted drawer for easy handling of trays holding the parts. It enhances workflow efficiency and reduces operator effort during loading and unloading operations.
Tools rack
The robot can operate various part-specfic tools and moves them using a pneumatic gripper with a ball-and-pin locking system. Unlimited tools can be interfaced.
Precise manipulation
The system features a 6-axis robot with a 10 kg (22 lbs) capacity allowing optimal positioning trajectory.
Easy learning
By entering the first and last blade position data manually, the system is able to automatically determine the locations of all the others on the tray.
X-ray system digital imaging
Specifications
| X-ray generator | 450 kV | |
| Flat panel detector | Up to 31 x 31 cm | Up to 12 x 12 inches |
| Detector - Pixel size | 100 μm | |
| Robot - Number of axes | 6 axes | |
| Robot - Max. load | 10 kg | 22 lbs |
| Robot - Gripper | Pneumatic coupler | |
| Max. part diameter | Ø 20 cm | Ø 8 inches |
| Max. part height | 20 cm | 8 inches |
| Max. part weight | 20 kg | 44 lbs |
| Number of doors | 2 - Front & Left side | |
| Door - Front | Loading | |
| Door - Left side | Maintenance | |
| Max. load tray | 45 kg | 99 lbs |
| System dimensions | 296 x 215 x 275 cm | 116 x 84 x 108 inches |
| System weight | 16 tons | 17,6 U.S tons |
