Real Time Radiography and Computed Tomography system for quick and precise inspections
Real Time (RT) and Computed Tomography (CT) system
RT & CT

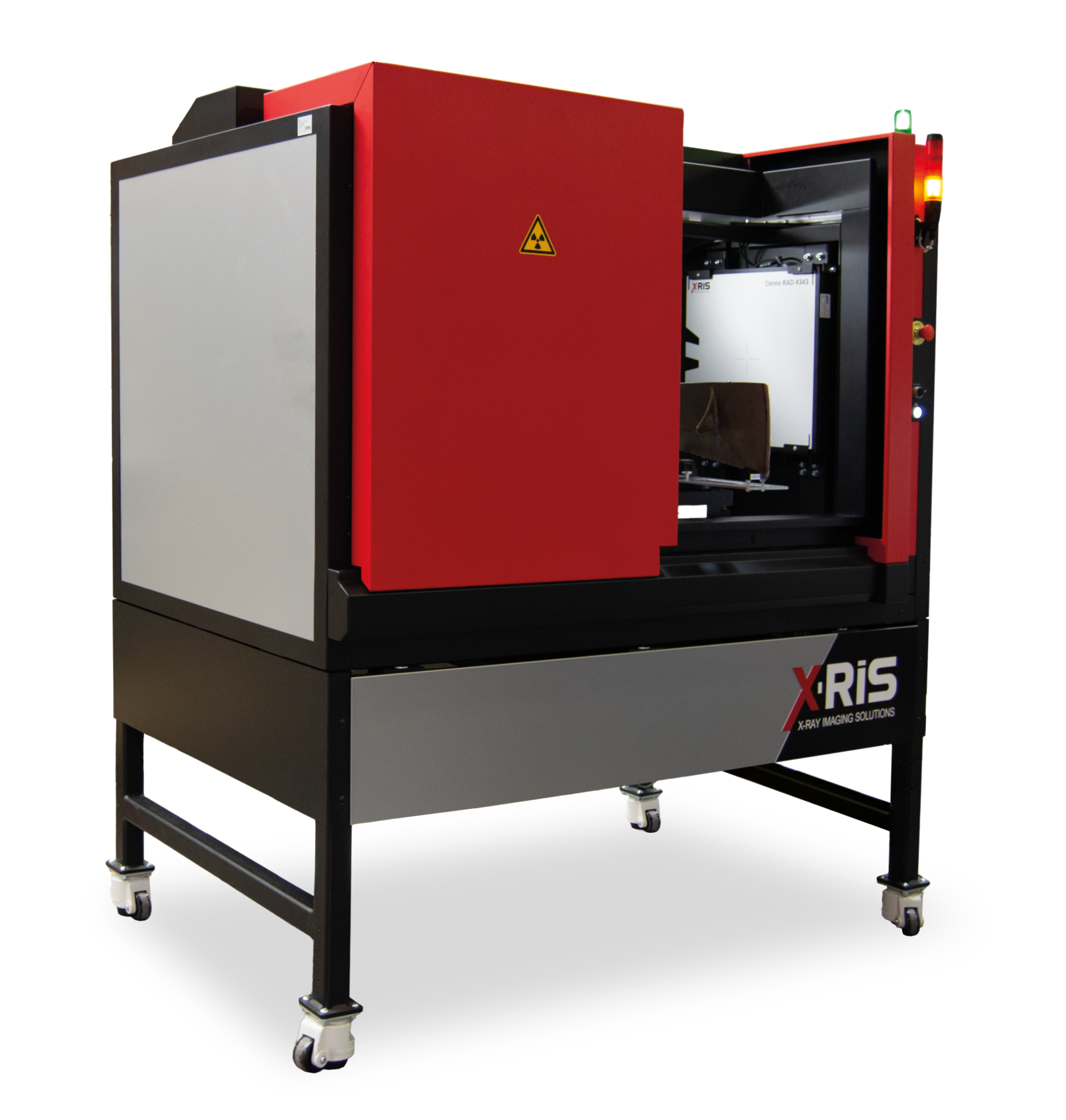

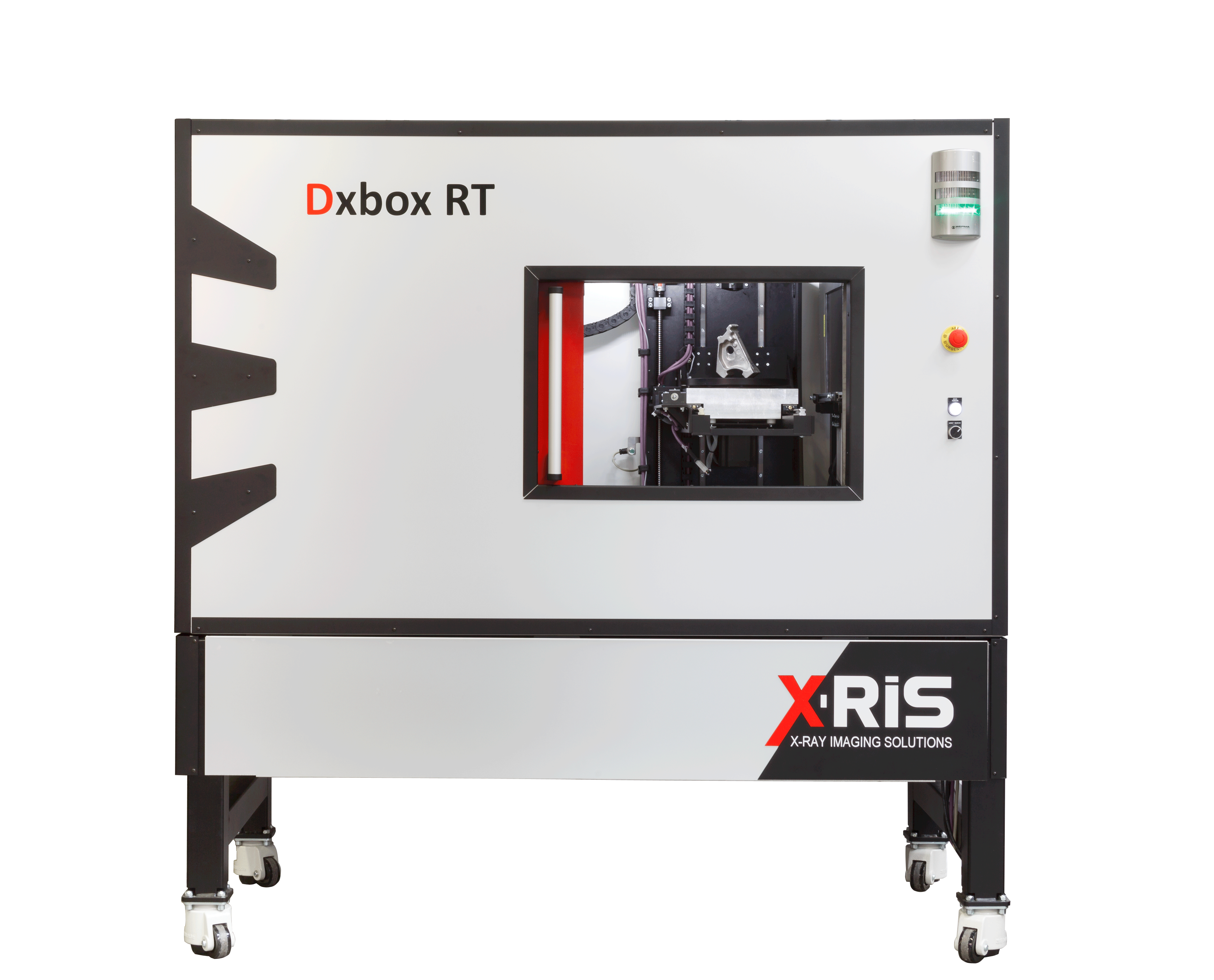

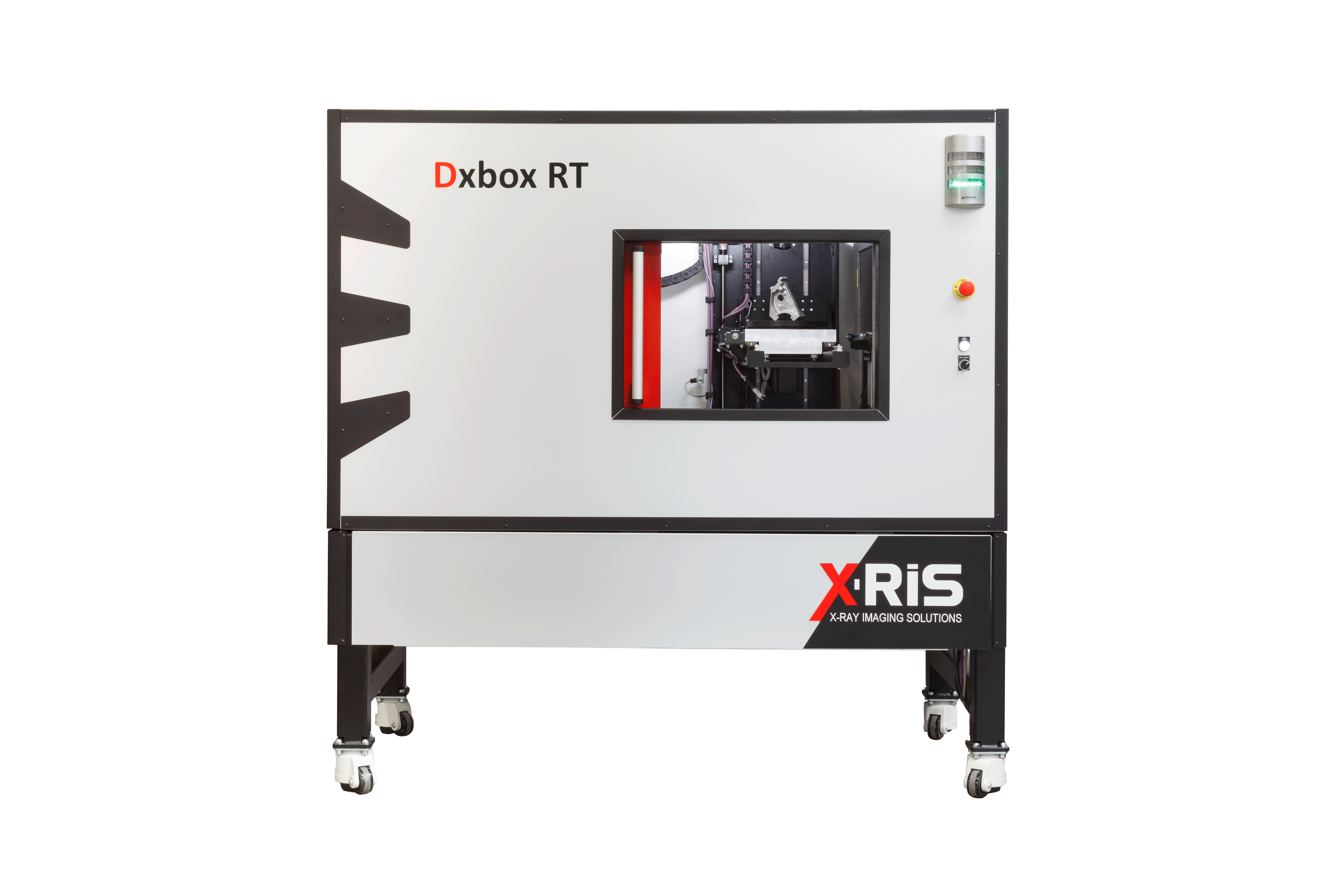

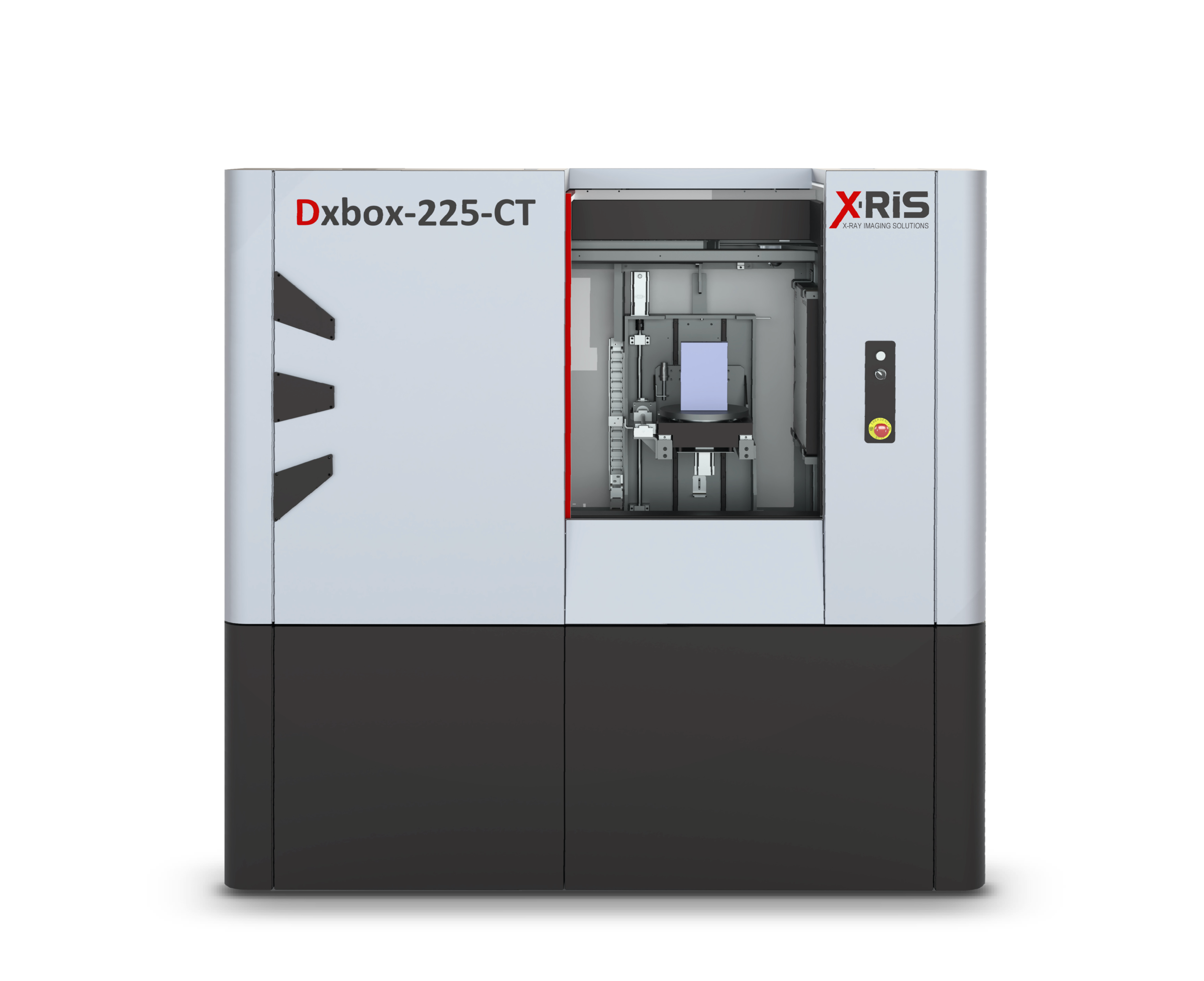

Dxbox RT/CT is a standard 5-axis system to perform real time inspection or tomography acquisitions up to 225 kV.
Advanced
Take benefit from all Maestro features to switch automatically from static to dynamic mode thanks to its ability to self-detect movements.
X-ray system digital imaging
Specifications
| X-ray generator | 150 - 200 - 225 kV | 150 - 200 - 225 kV |
| Flat panel detector | Up to 43 x 43 cm | Up to 17 x 17 inches |
| Number of axes | 5 axes | 5 axes |
| Rotative table | Ø 25 cm | Ø 10 inches |
| SDD | Up to 112 cm | Up to 44 inches |
| Max. part diameter | Ø 25 cm | Ø 10 inches |
| Max. part weight | 15 kg | 33 lbs |
| System dimensions | 180 x 85 x 216 cm | 70 x 33 x 85 inches |
| System weight | 2.7 tons | 3 U.S tons |
| CT enlargement x1 | Ø 42 x H. 58 cm | Ø 16 x H. 23 cm |
| CT enlargement x2 | Ø 34 x H. 40 cm | Ø 13 x H. 15 cm |
| Certifications | NFC 15-160 / NFC 74100 | |
