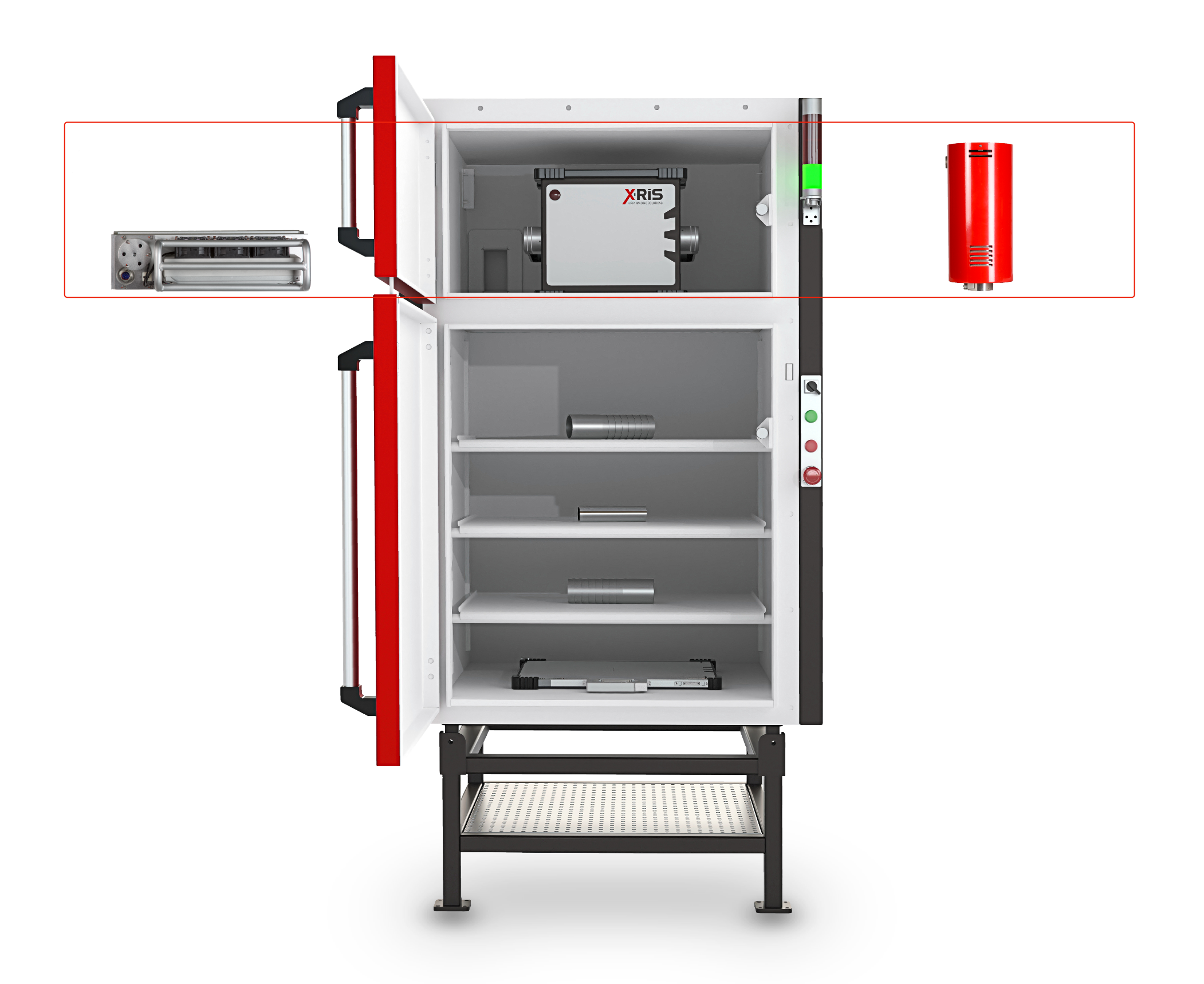

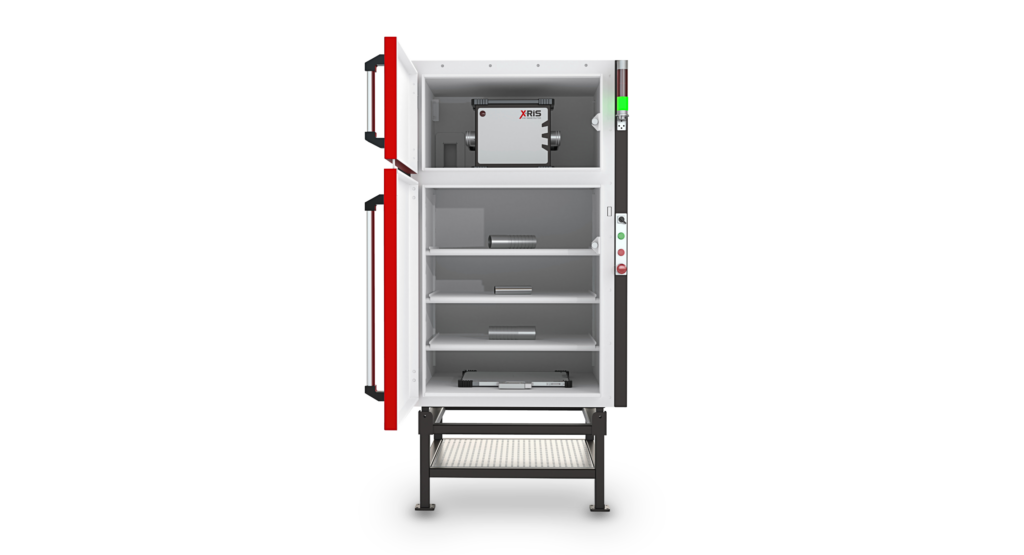

Dxbox-200

X-ray machine, compact and adaptable for NDT inspection

Flexibility

Fully compatible with a wide range of X-ray generators and flat panel detectors.

Image quality

By adjusting the position of your sample up & down, you can take advantage of the geometrical magnification.

Mobile

The wheels make it easy to move the X-ray set anywhere in your facility and allow for a hassle-free installation and removal. The dimensions are 150 x 95 x 85 cm and the weight is 700 kg.

Easy to use

Ideal for both a quick one-time job and routine work, its magnetic door interlocks provide a safe and seamless user experience.

Specifications

X-ray generator 150 - 160 - 200 kV 150 - 160 - 200 kV
Flat panel detector Up to 43 x 43 cm Up to 17 x 17 inches
Number of axes 1 axis 1 axis
Part support Can be motorized
Upper compartment X-ray generator Eletrical components
Lower compartment Part support Detector
SDD Up to 94 cm Up to 35 inches
Max. part weight 5 kg 11 lbs
System dimensions 94 x 87 x 184 cm 37 x 34 x 74 inches
System weight 820 kg 1808 lbs
Certifications NFC 15-160
